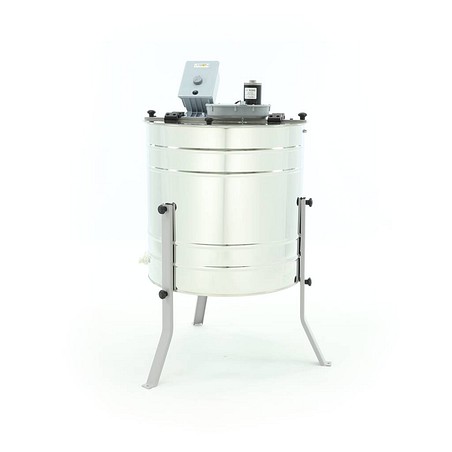

Extractor 4 frames UNIVERSAL tangential, electric MINIMA
A 4-frame electric honey extractor will become a reliable tool for a novice beekeeper to fill with the small bee population.
A universal basket adapts to all types of frames.
The electric motor is 230 V. The extractor is mobile and easy to carry.
The MDD-01 control unit allows you to adjust the rotation speed of the basket. It is made of stainless steel and is acid resistant.
Universal 4-frame tangential electric extractor. MINIMUM model
Made of stainless steel.0.6mm
Diameter 600mm.
Stainless steel basket. Speed drive motor
Transparent lid in polycarbonate.
Plastic tap 6/4"
220V power supply
Extractor eléctrico tangencial de 4 cuadros UNIVERSAL. Modelo MÍNIMA
Fabricado en acero inox.0.6mm
Diámetro 600mm. Patas cortas
Jaula inox. Motor variador de velocidad
Tapa transparente en policarbonato.
Grifo plástico 6/4"
Fuente de alimentación 220V
Data sheet
- Type of extractor
- Tangential
- Number of frames
- 4 paintings
- Line
- Minimum
- Tank diameter
- 600 mm
- Frame model
- Universal
- Transmission
- Electric
- Power supply
- 220V
- Engine
- 24V/120W
- Metal thickness of the tank
- 0.6 mm
- Valve or Thread
- Plastic Valve 6/4" 40mm
- Cover bar
- Powder-coated paint
- Polycarbonate lid
- 3 mm
- Legs
- Short, painted to dust
- Hinges
- Plastic
- Basket
- 20x20 mm
- The contraction of the drum basket
- Cap/ Cap
- Reinforcing the vat
- Not included
- Tank height
- 610 mm
- Warranty
- 2 years
- Assembly and packaging
- Self-assembling extractors (supplied in a cardboard box)
